But then I had some good luck: a fellow user of the 6502.org forums, lordbubsy, had a spare XC95108 PLCC84 and a nice breakout PCB with socket available. In turn I've sent him a spare Xilinx USB JTAG programmer. So very shortly I should have more then enough CPLDs to last me including 3 x 44pin XC9572, 3 x 84 pin XC9572 and a 84 pin XC95108, along with plenty of PLCC sockets. Phew!
Using a single CPLD will save me a whole bunch of pins, and should allow me to create a fairly sophisticated custom IC design. I've started to code up what I described in my previous post, with the addition of a sound output line. This will be the most complicated part of the design. The purpose (other then for fun and learning) of the sound output is so that I can include a small sounder on the SBC PCB itself. I can then have the computer generate tones on booting, etc.
There are many approaches to tone generation in a simple micro like mine. The simplest is just to attach an output line (accessed through a latch) to a sounder. It's then simple to, in software, toggle the line on and off at a reasonable speed (say 1KHz) to generate a tone. But much better then this is to use the system clock, and a programmed divider/counter to automatically toggle the output pin. That way you only need to write to a port once to generate a continuous tone at a particular frequency. Even better then this would be a system which uses a second register to hold a duration - the amount of time the tone should be played for. This is what I've started to implement, and have mostly working in prototype form. It requires quite a fair chunk of the resources available to a simple CPLD like the XC9572, since it has to include several counters and some comparators.
So a summary of the "features" for my "custom IC":
- Address decoding:
- RAM, ROM, DUART and IDE outputs
- 8 expansion selects
- 8 address inputs (the high byte of the bus)
- READ, WRITE generation via E, Q and R/W inputs
- RESET generation
- IDE latch to fascilitate 16 bit IDE transfers
- RAM bank switching latch
- Interrupt routing:
- DUART and IDE on the SBC
- 4 expansion inputs
- General purpose button for, say, NMI generation
- ROM write-protect control via jumpers
- Sound output line
The circuit for the computer main board currently looks like the following:

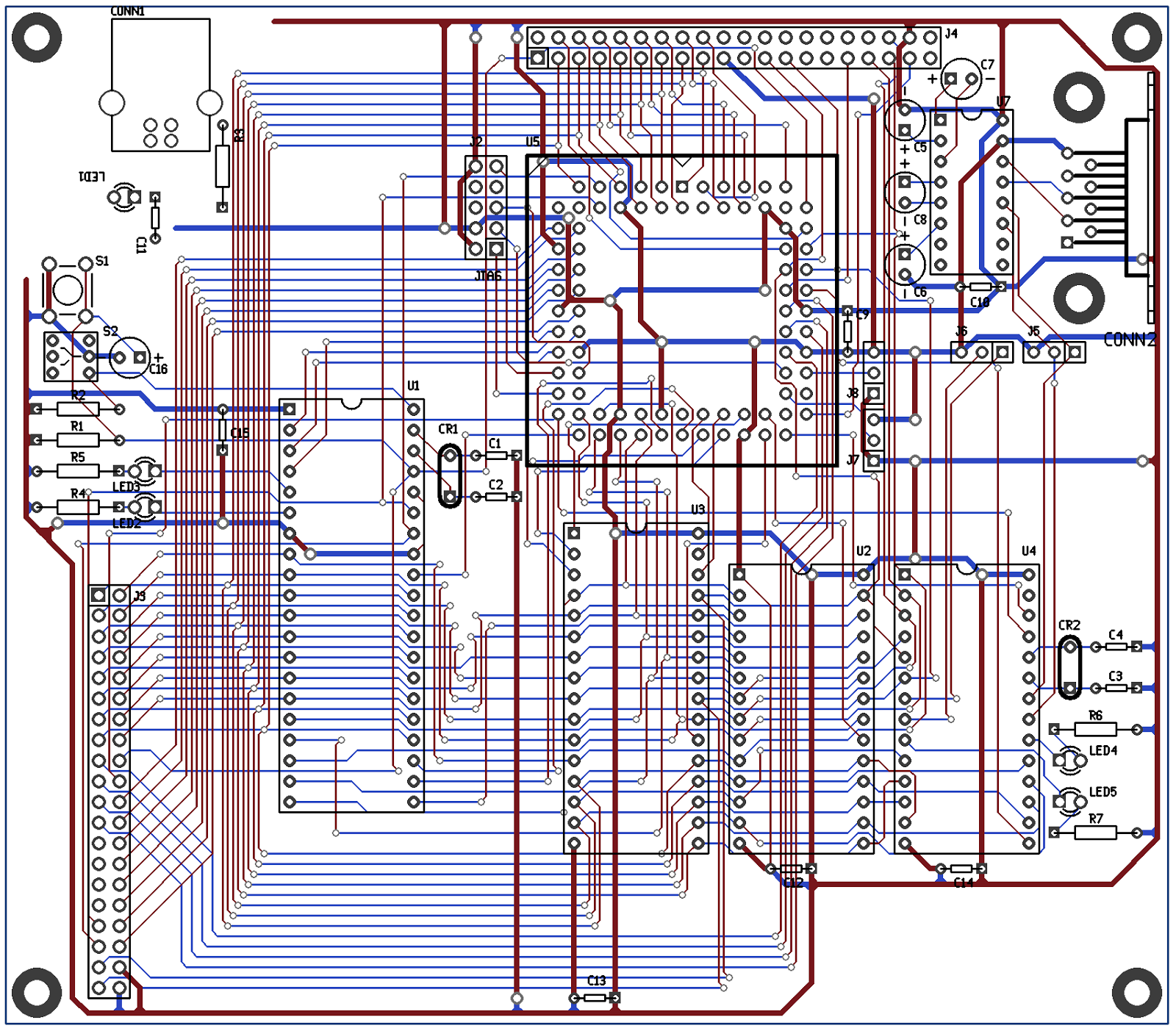

I've made quite a bit of progress on the PCB, but it isn't quite finished yet:
It is certainly more "dense" then the previous PCB, and a few cm bigger in both directions. You can see the vast number of vias needed around the CPLD, and the 9 pin serial port on the right. I've yet to finish the power supply details; I may yet change my mind and use a more traditional power connector instead of USB (or I may use both). You can also see that this time I have remembered some mounting holes!
This is very much a work in progress, and I don't intend to do any more work on this PCB until I have the whole circuit, and the VHDL code for the CPLD, running on breadboard.
Talking of PCBs, the other thing I have been doing is setting myself up to make PCBs at home. Not complex (relatively speaking) 2 layer boards like the one for the 6809 computer, but things like breadboard adapters and simpler circuits including things like AVR microcontrollers, etc.
So I have bought some of the things I need to try something I've not done since my school days. So far the results look quite positive. Before lordbubsy offered to send me a XC95108 breakout PCB, I had a go at creating a PCB from his design for such a board:
The result looks quite good I think! It's obviously got some issues, but considering this was my first attempt, and could probably be made to work with a few touchups, I'm quite pleased. I am using Ferric Chloride and the toner transfer method. It is actually the toner transfer part which is causing me the trouble with the "blotches". Most likely I need to use better quality paper, so I can get cleaner transfers. The actual etch of the PCB worked very well.
I still need to buy a few thing to be able to make useable PCBs, most noticeably a small pillar drill. But it is quite a lot of fun making up simple PCBs. I will probably write a more detailed account when I am in a position to start and finish a completed PCB design.
Since I will soon have a nice XC95108 adapter, the first PCB I will make (and drill) will be an adapter for the Shrink-DIP Yamaha video controller. This will then be the first daughter board I work on prototyping on breadboard.
But before that can happen I need to prototype the main computer.... And finish my VHDL.
